20m Retractable Air Hose Reel NZ | Auto Rewind Wall Mount
Couldn't load pickup availability
20m Retractable Air Hose Reel NZ: More Reach, Less Workshop Clutter

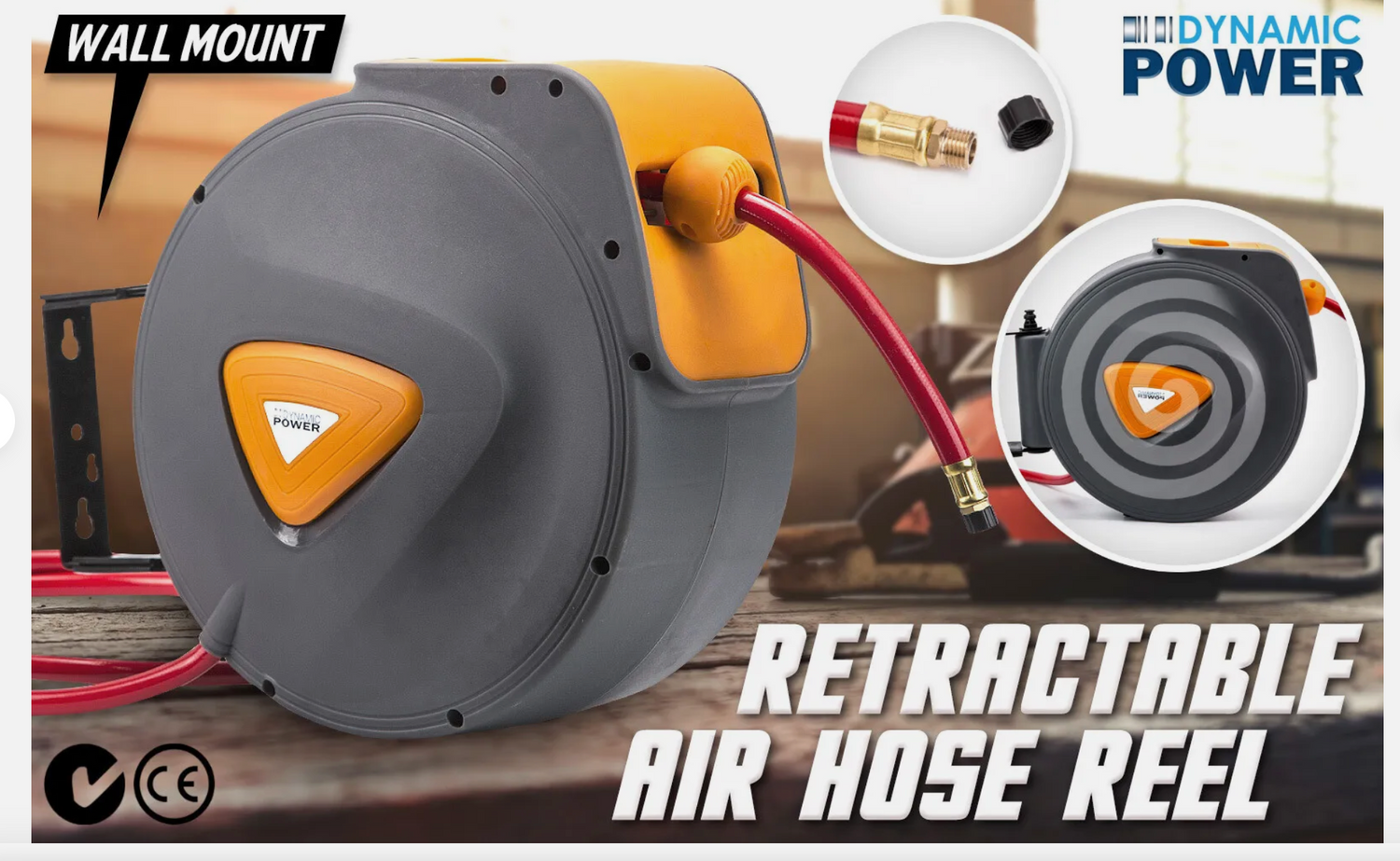

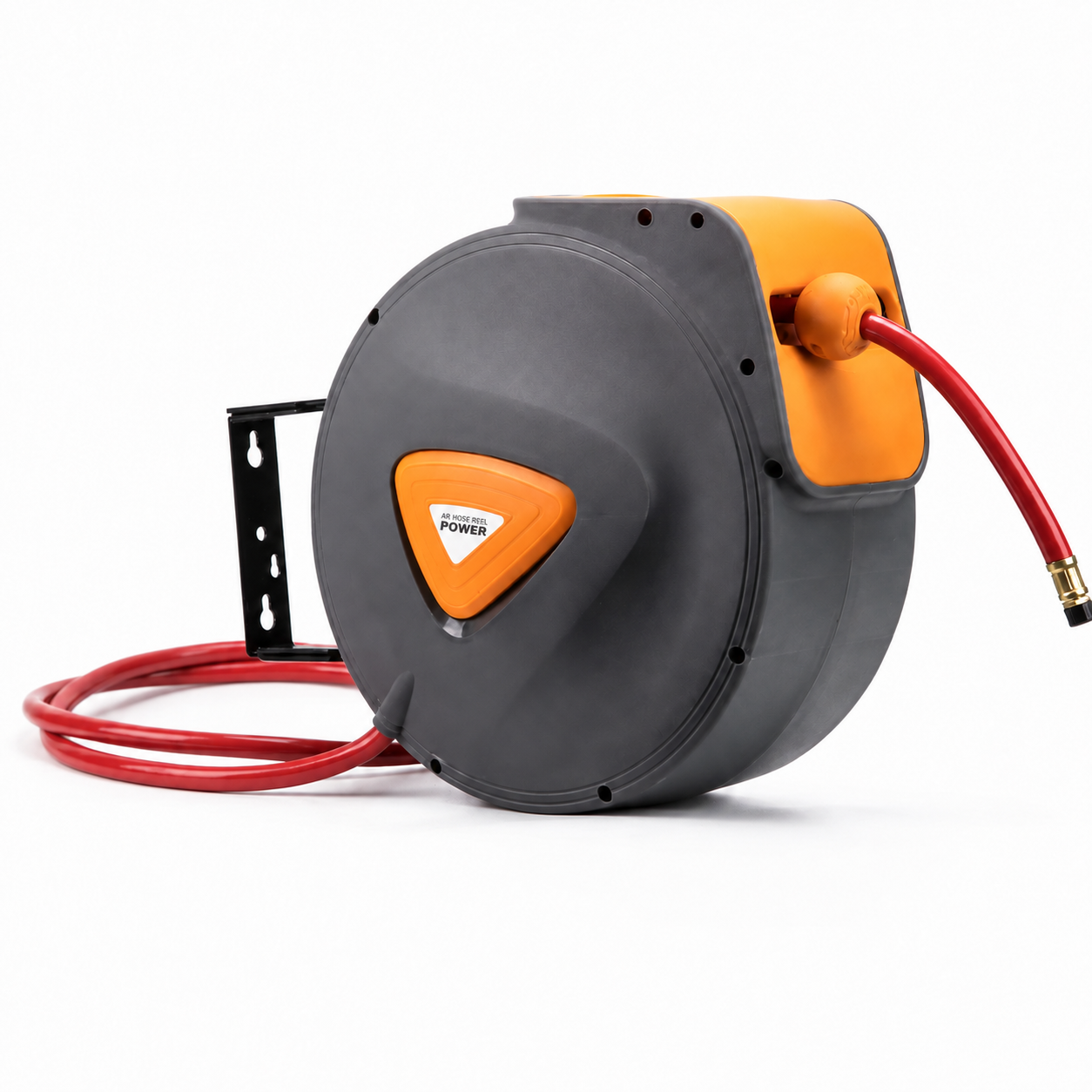

Keep your airline ready for the next job without winding it by hand. This 20m retractable air hose reel combines spring-loaded auto rewind, an incremental hose lock and a 180° swivel wall mount for a more organised garage or workshop.
Pull out the hose you need, work from a convenient fixed connection point, then guide it back into its protective casing when finished. Storing the hose off the floor between jobs helps reduce loose-hose clutter and potential trip hazards.
At a glance: 20m main hose • 2m leader hose • PVC hose • 1/4-inch BSP fittings • 8 bar / 116 PSI working pressure • 180° swivel mount • Auckland stock.

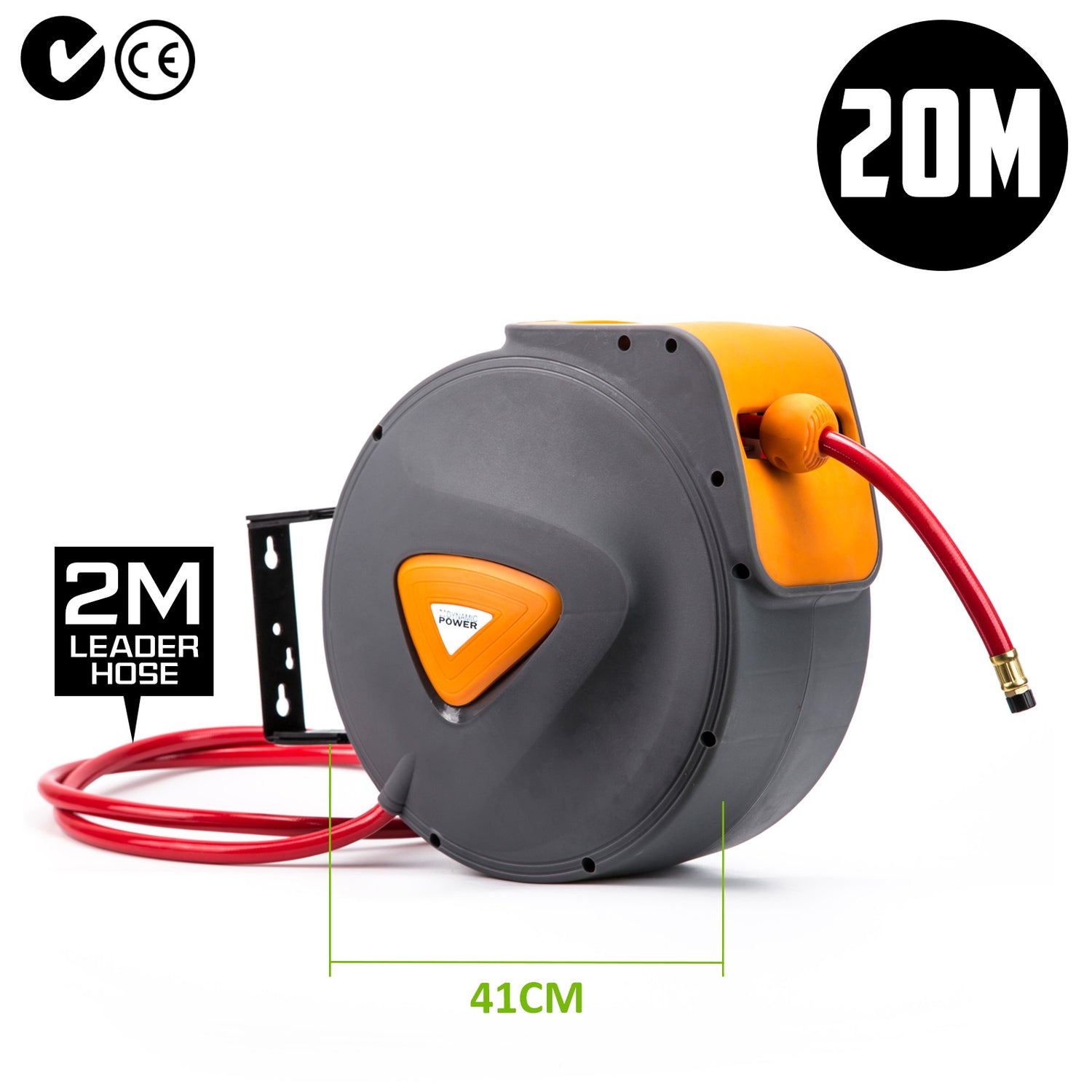

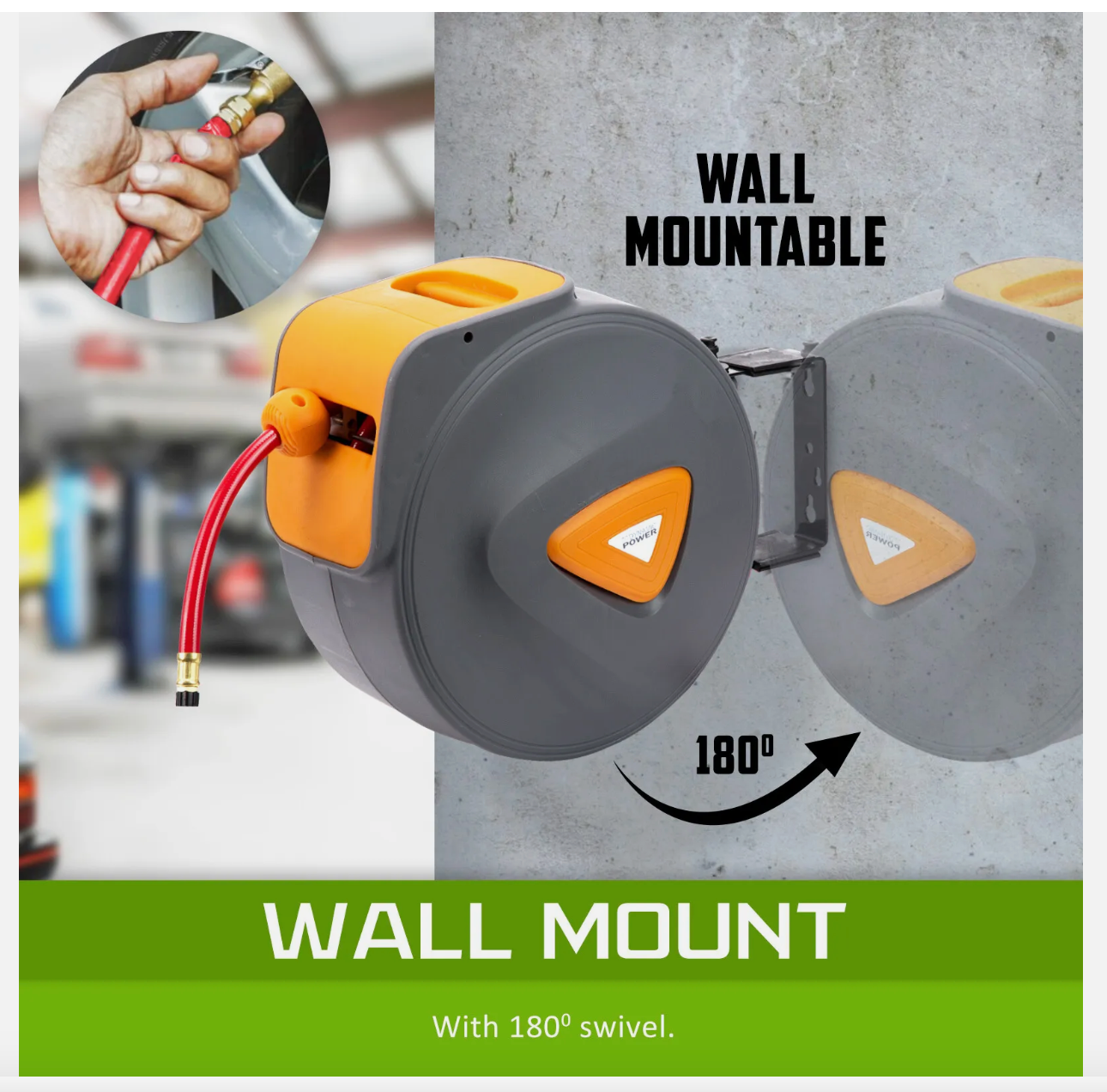

20m Reach with a 180° Swivel Wall Mount
The 20m main hose gives you room to move around vehicles, benches and garage work areas. The wall-mounted reel swivels through 180° to follow your working direction. A separate 2m leader hose connects the reel to a nearby compressor.
A removable mounting bracket and top carry handle make repositioning and transport more convenient. Check the proposed mounting surface and compressor location before installation.

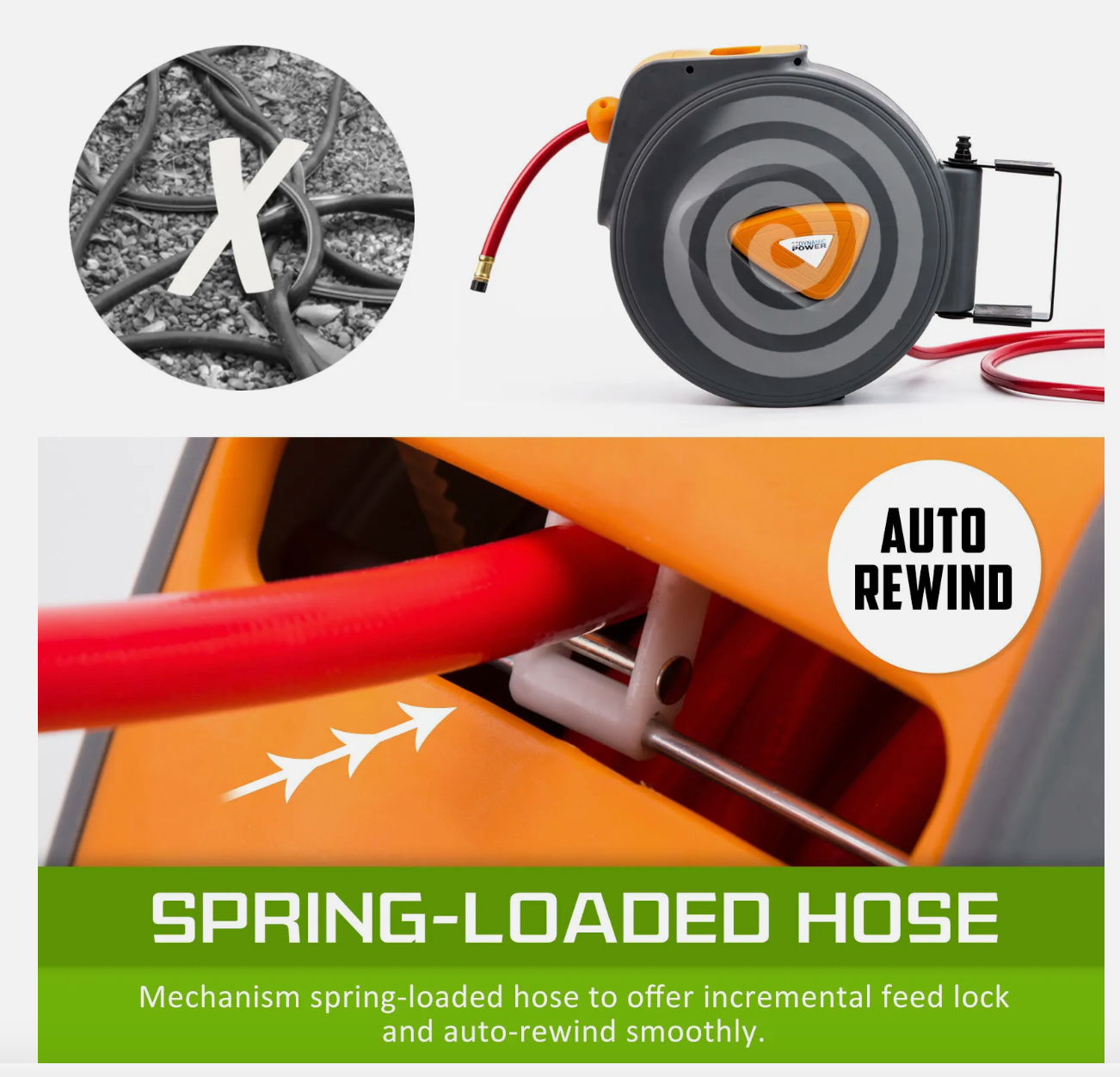

Incremental Locking and Automatic Rewind
The spring-loaded hose locks at intervals, helping keep the length you have pulled out available while you work. A tug activates the automatic rewind mechanism, while the self-layering system guides the hose into the casing for organised storage.
Rewind safely: Keep hold of the hose and guide it back. Do not allow it to snap back unattended. Follow the supplied instructions for operation, installation and maintenance.

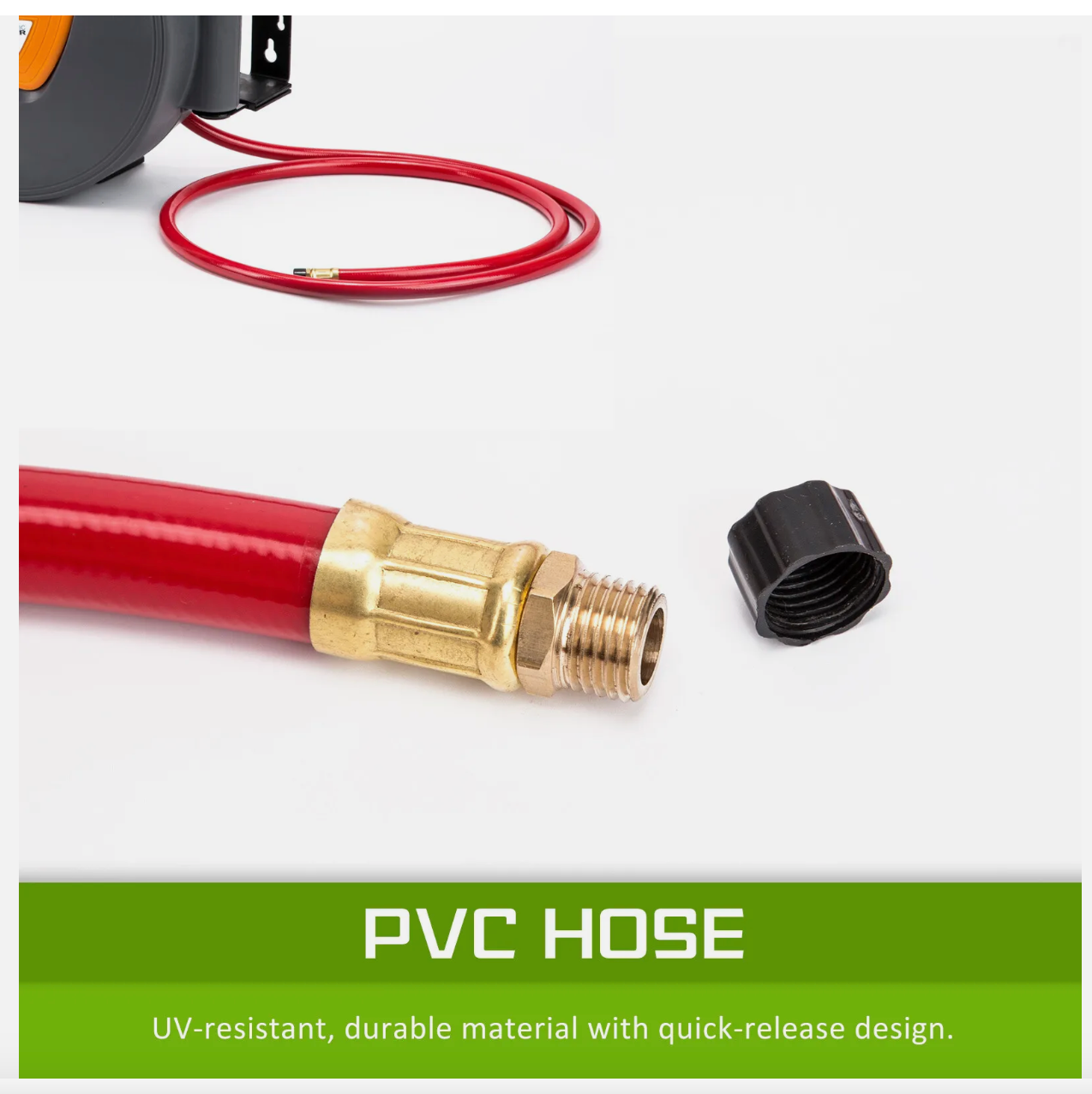

Compressor Hose Reel with 1/4-inch BSP Fittings
The PVC hose is fitted with stainless steel 1/4-inch BSP fittings. It can form part of a compressed-air setup for compatible tyre inflators, blow guns and pneumatic tools.
Check your compressor and tool connections before ordering. A 1/4-inch BSP thread does not guarantee compatibility with every quick-connect coupling. Any required adapters or couplers must match your equipment. Check each tool’s pressure and airflow requirements against your compressor, hose and fittings.
Built for Everyday Garage and Workshop Organisation
- Mechanics and automotive workshops: Extend the airline towards a vehicle, then store it neatly between jobs.
- Tradies and farm workshops: Keep a dedicated compressed-air hose close to your work area, with swivelling access and automatic storage.
- Home garages and DIY: Spend less time untangling and manually winding a loose hose after compatible inflation and air-tool tasks.
A hose reel supports tidier storage, but does not eliminate every trip hazard. Keep walkways clear while the hose is extended.

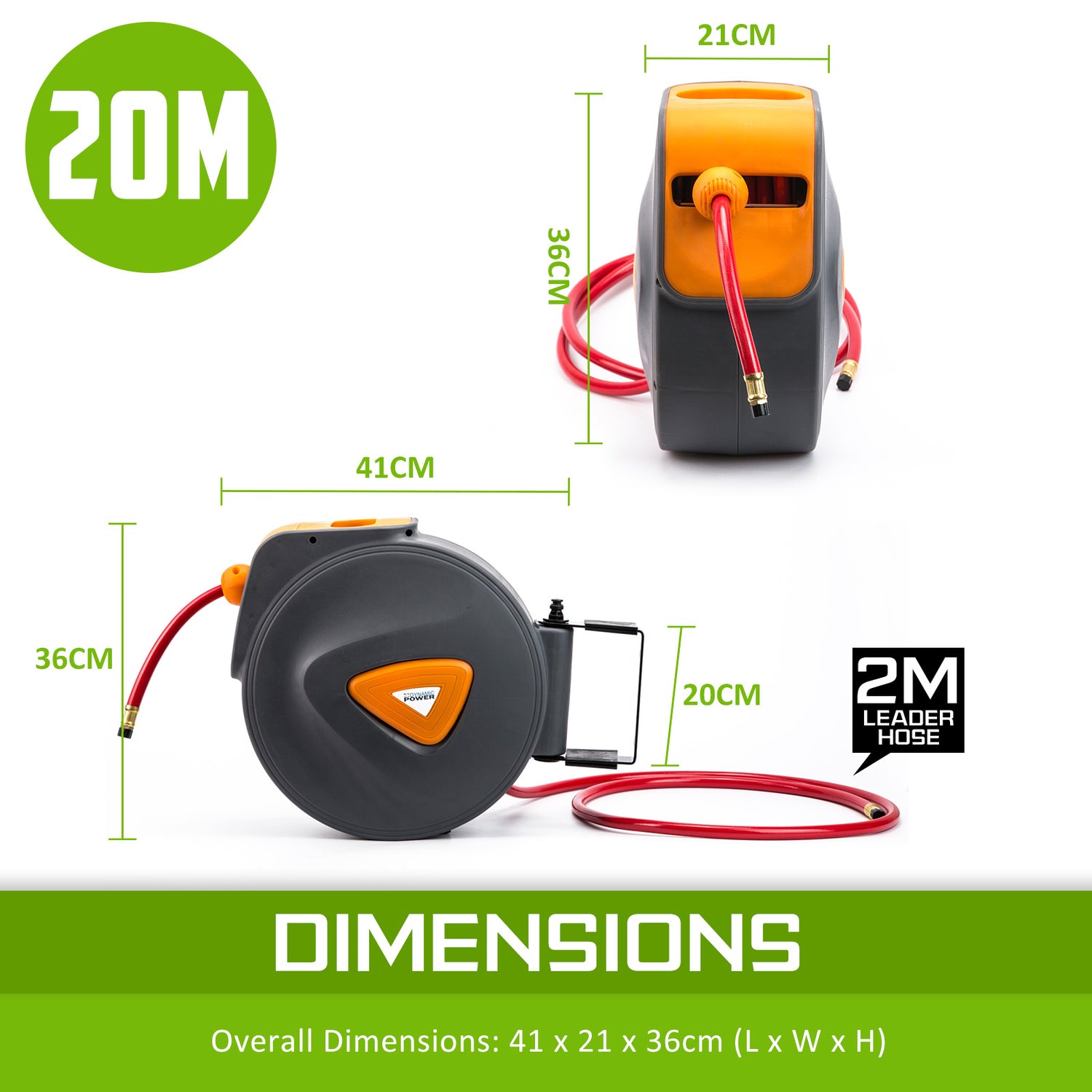

Technical Specifications
| Main hose length | 20m |
|---|---|
| Leader hose length | 2m |
| Hose material | PVC |
| Hose dimensions | 8mm internal diameter × 12mm external diameter |
| Fittings | Stainless steel, 1/4-inch BSP |
| Working pressure | 8 bar / 116 PSI |
| Working temperature | −5°C to 45°C |
| Reel casing | Polypropylene |
| Mounting | Wall bracket with 180° swivel |
| Hose storage | Spring-loaded auto rewind with incremental lock and self-layering mechanism |
| Colour | Orange or yellow, depending on stock |
| Warranty | Six-month local warranty |
Package Contents
- 1 × air hose reel with 20m main hose
- 1 × 2m leader hose
- 1 × wall bracket
- 1 × rod hinge
- 2 × DynaBolts
Check that the mounting hardware is suitable for your wall construction. Do not exceed the 8 bar / 116 PSI working pressure. Depressurise the system before disconnecting or servicing it.
The Technsave NZ Advantage
- Auckland stock: Supplied locally for domestic dispatch.
- Free NZ shipping: Free standard tracked delivery within New Zealand.
- Delivery estimate: 1–3 business days after dispatch. Tracking may take up to 48 hours to update.
- NZ tax invoice: Available on request.
- Local support: Six-month local warranty and Auckland-based customer support.
Choose from the payment methods displayed at checkout.
Frequently Asked Questions
Where can I buy a 20m retractable air hose reel in New Zealand?
Technsave supplies this 20m retractable air hose reel at technsave.nz from Auckland stock. It includes auto rewind, a 180° swivel wall mount and a 2m leader hose, with free standard tracked NZ shipping and estimated delivery of 1–3 business days after dispatch.
Will this compressor hose reel connect to my air tools?
The reel has 1/4-inch BSP fittings and an 8 bar / 116 PSI working pressure rating. Check your compressor and tool threads, quick-connect coupling profile, airflow demand and required pressure before connecting. How does the auto rewind air hose reel work?
Pull out the main hose to an available locking interval. A tug releases the lock and activates spring-loaded rewind. Keep hold of the hose and guide it back into the casing. The self-layering mechanism helps wind the hose evenly for storage.
