Diagnostic Automotive Circuit Tester Tracer Wire Short Open Finder Detector Tool

Brand New,Premium Quality
NZ stock and Shipped from Auckland
Free shipping within New Zealand
Warranty: 6 month
Photo is for reference only

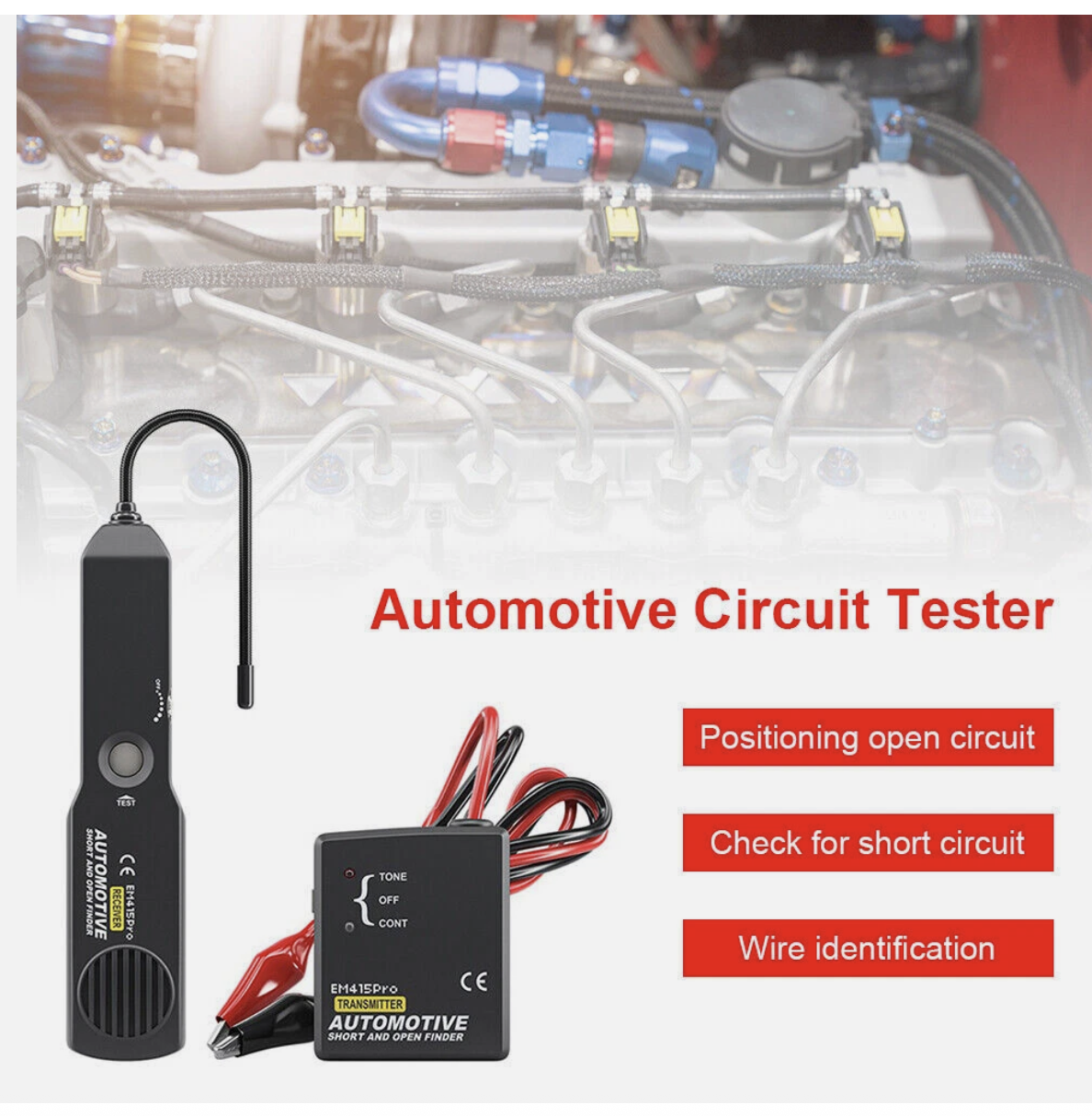

Features:
Locate open circuit: Powered by 2pcs*9V batteries (notes: not included). It detects and alerts immediately where a circuit is open. You can quickly locate short circuits, open connections, broken wires.
Check short circuit: You can also find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone, ** Flexible probe: Flexible probe help reach wires in congested places and hard-to-reach area.
Multifunction: It is designed to identify and trace wires or cables without damaging the insulation. I t also can be used in checking short circuit, locating open circuit, wire tracing, wire identification and more.

Quick and easy: Judge continuity of the cables or wires, and diagnose the break point, making your repairs quick.

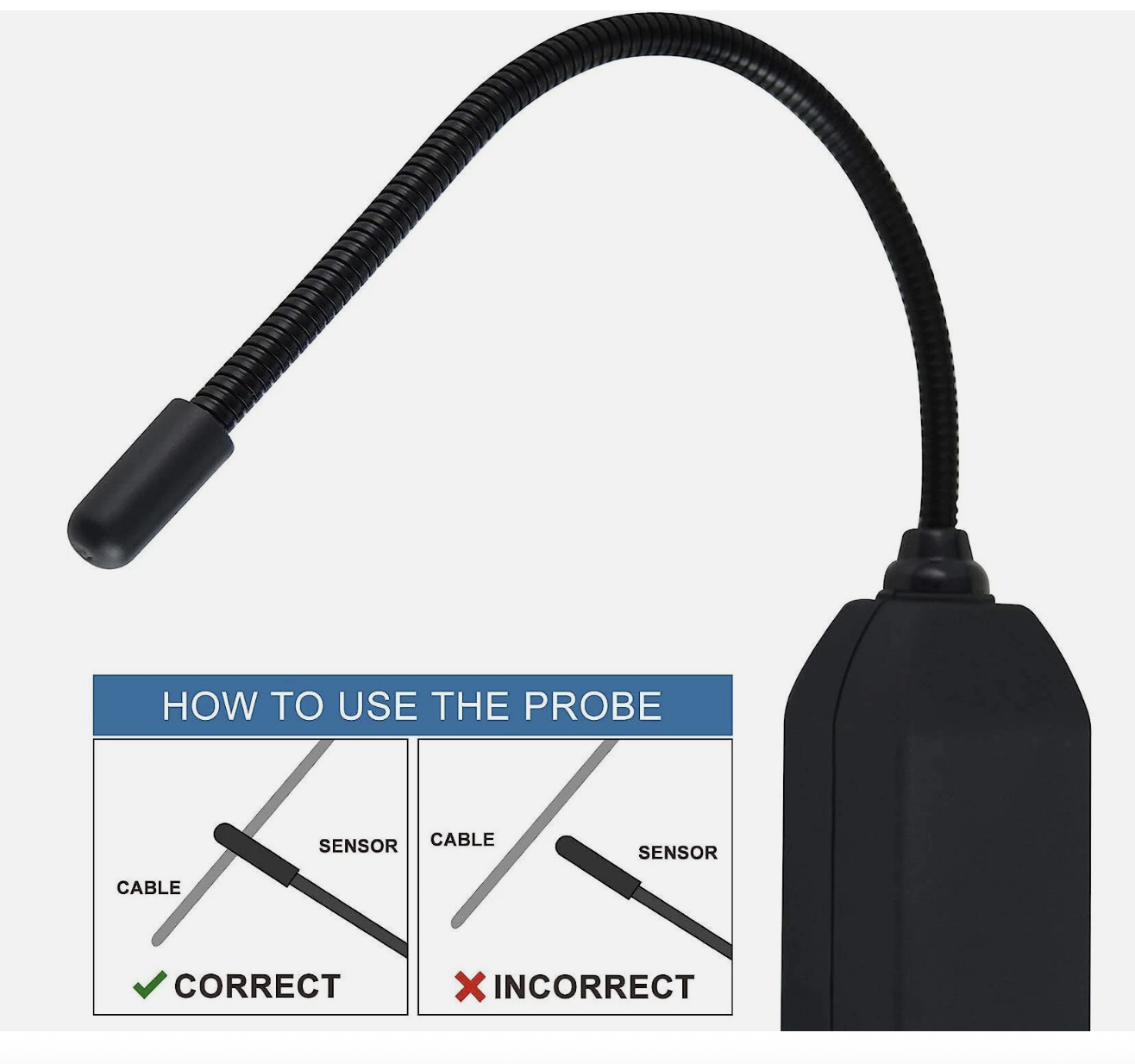

HOW TO USE THE PROBE?

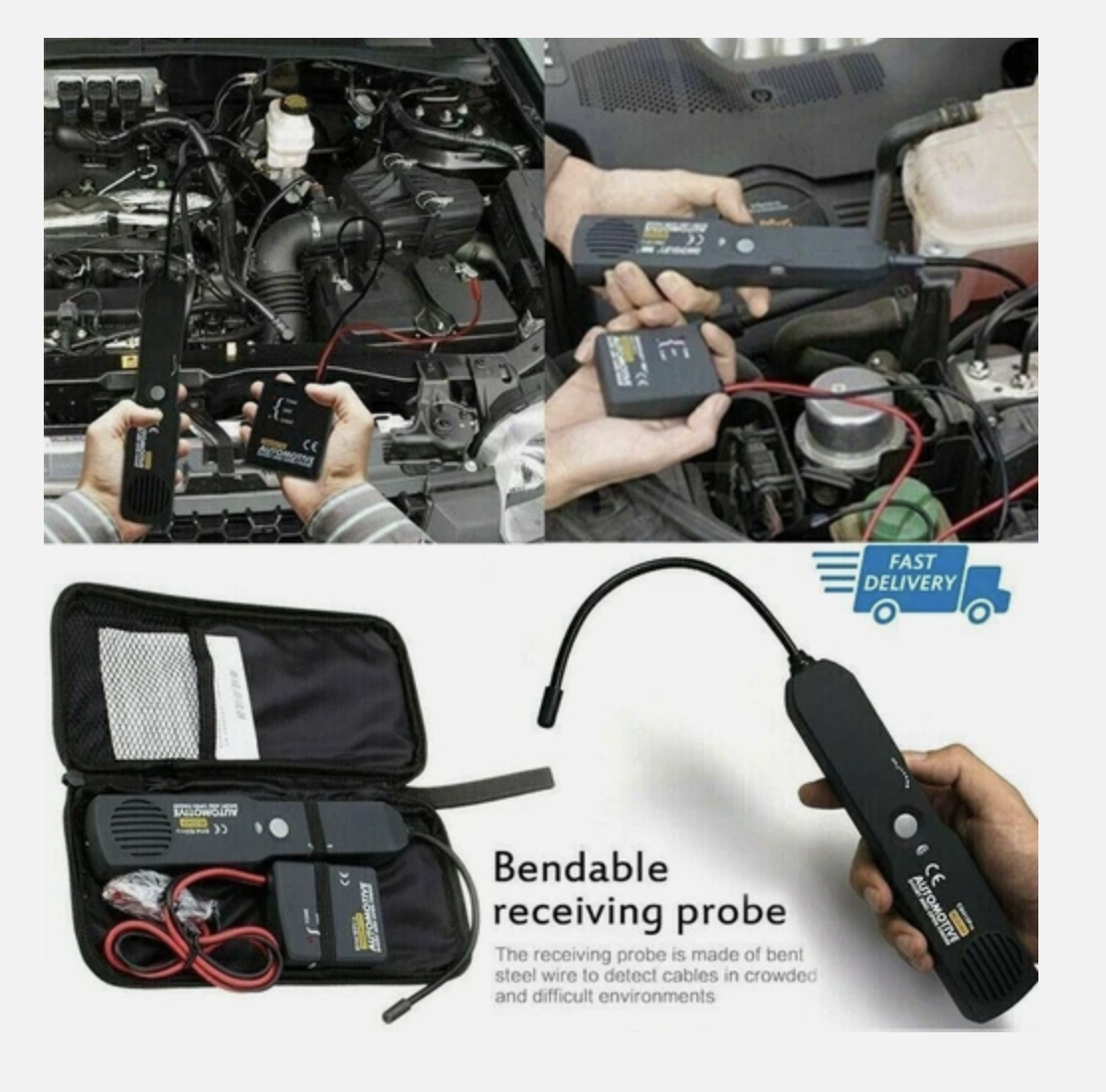

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach
wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings,
the probe will pick up the signal from the wire in a range of positions. However, for the best
possible range the Receiver's probe tip (black cap) should be positioned perpendicular (at 90o)

to the wire being traced and either above or below it.

Specifications:
Receiver: 240*44mm
Transmitter: 58*68mm
Color: black
Material: ABS

Battery: 6F22 9V battery (not included)

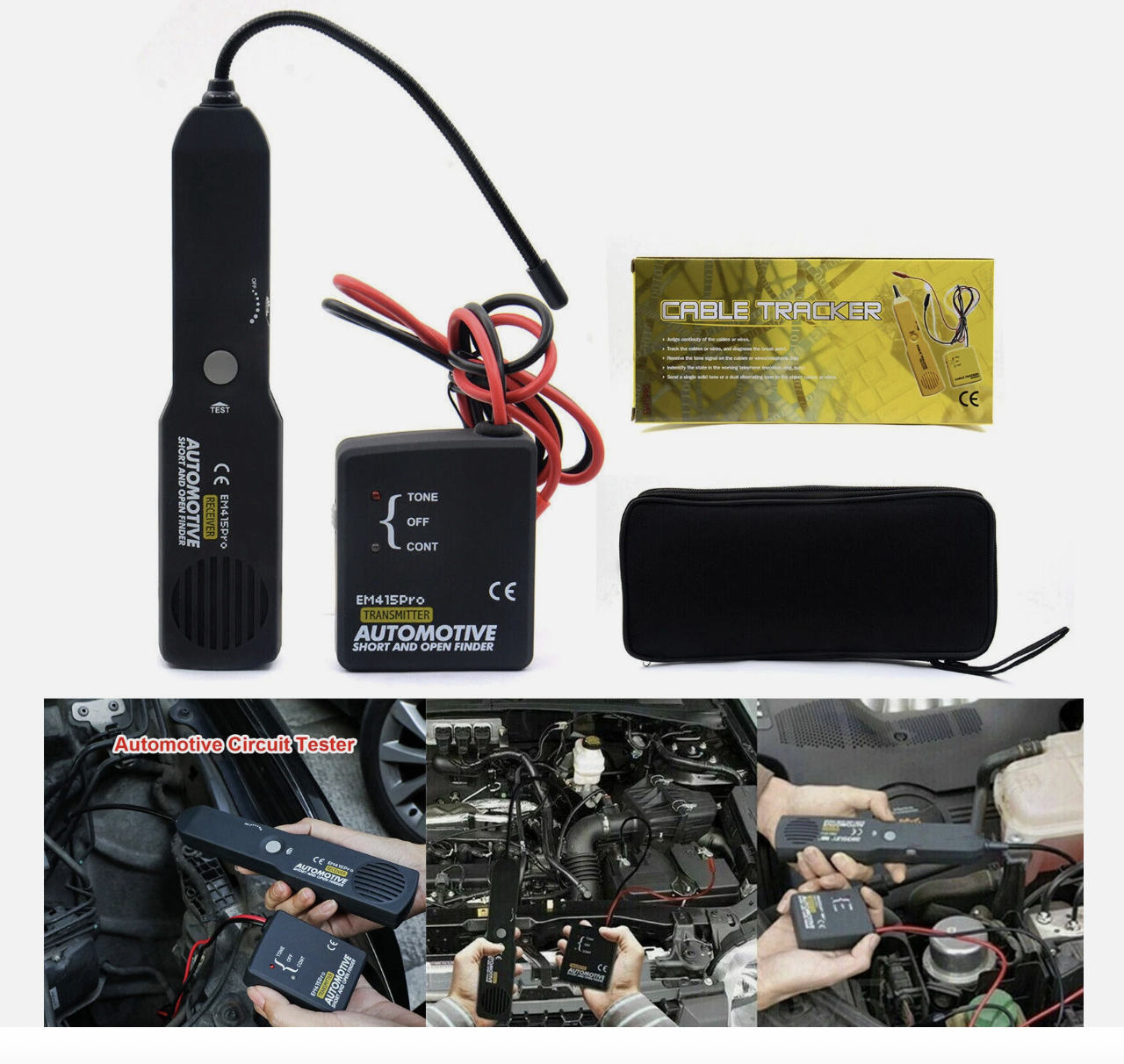

Package list:

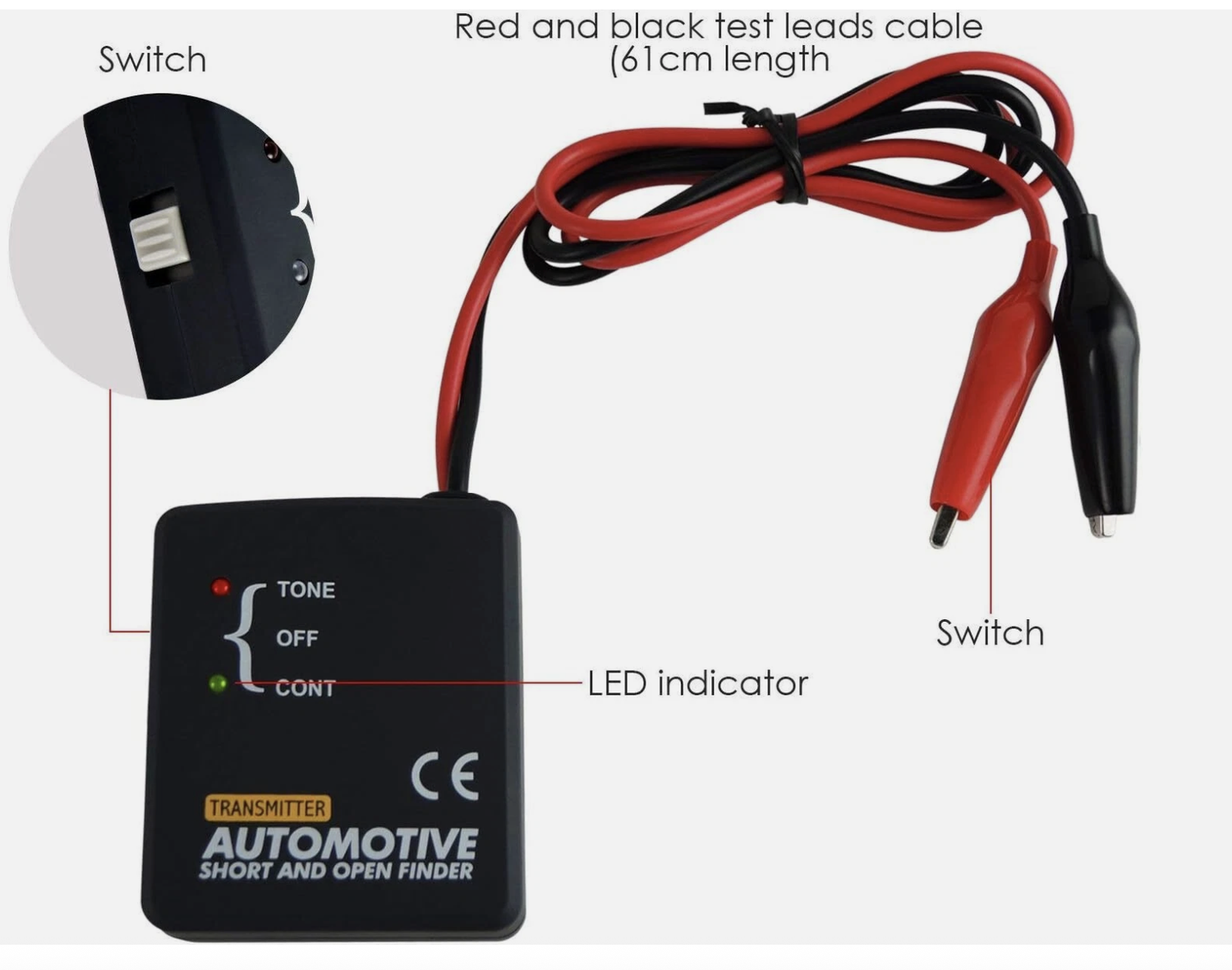

1 x automotive short and open finder transmitter

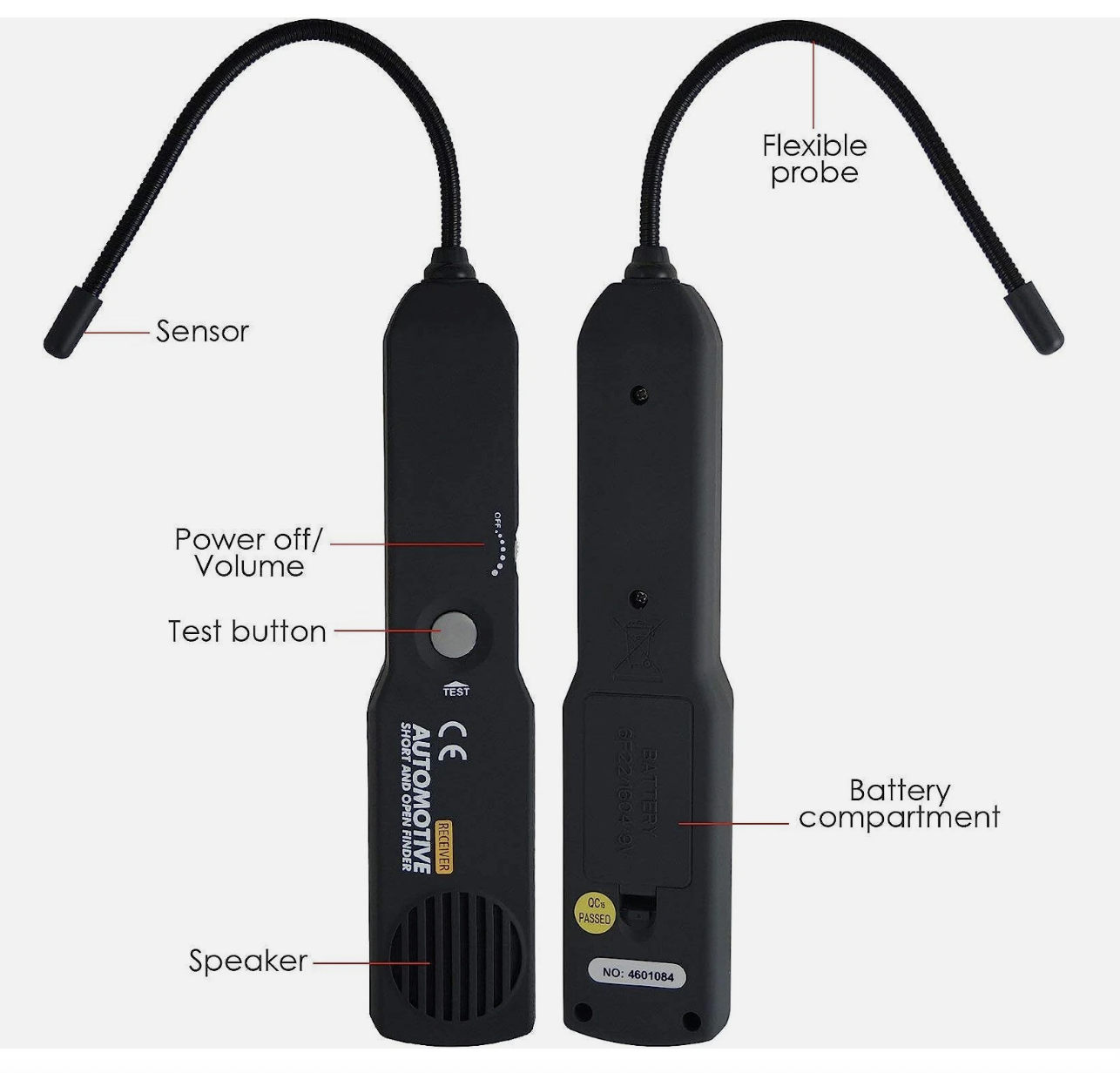

1 x automotive short and open finder receiver
1 x carrying bag
1 x user manual
