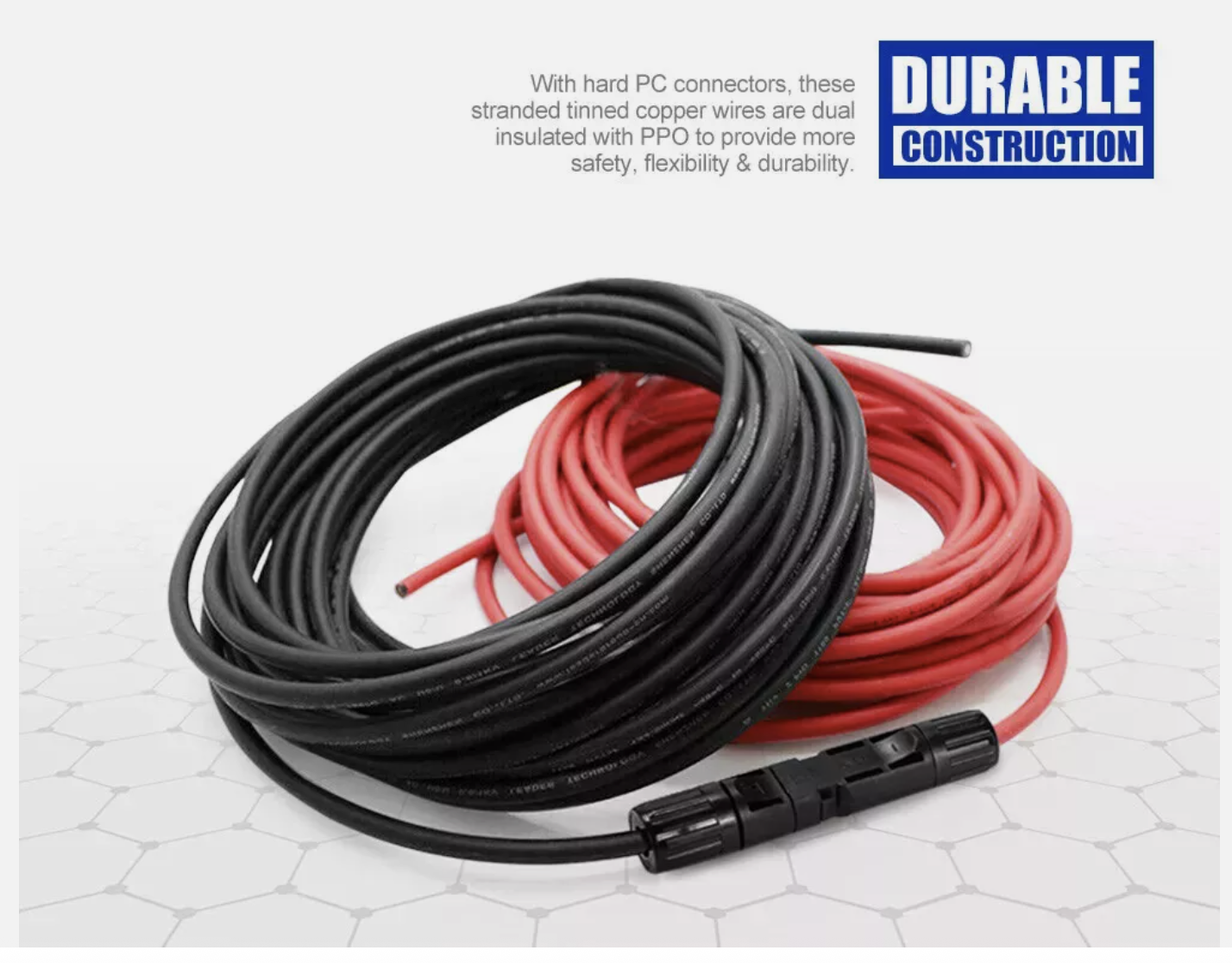

Extension Cable Wire Connectors Solar Panel To Regulator 4mm² 6mm² 10AWG 12AWG

Brand New,Premium Quality
NZ stock and Shipped from Auckland
Free shipping within New Zealand
Warranty: 6 month
Photo is for reference only
Quantity:1

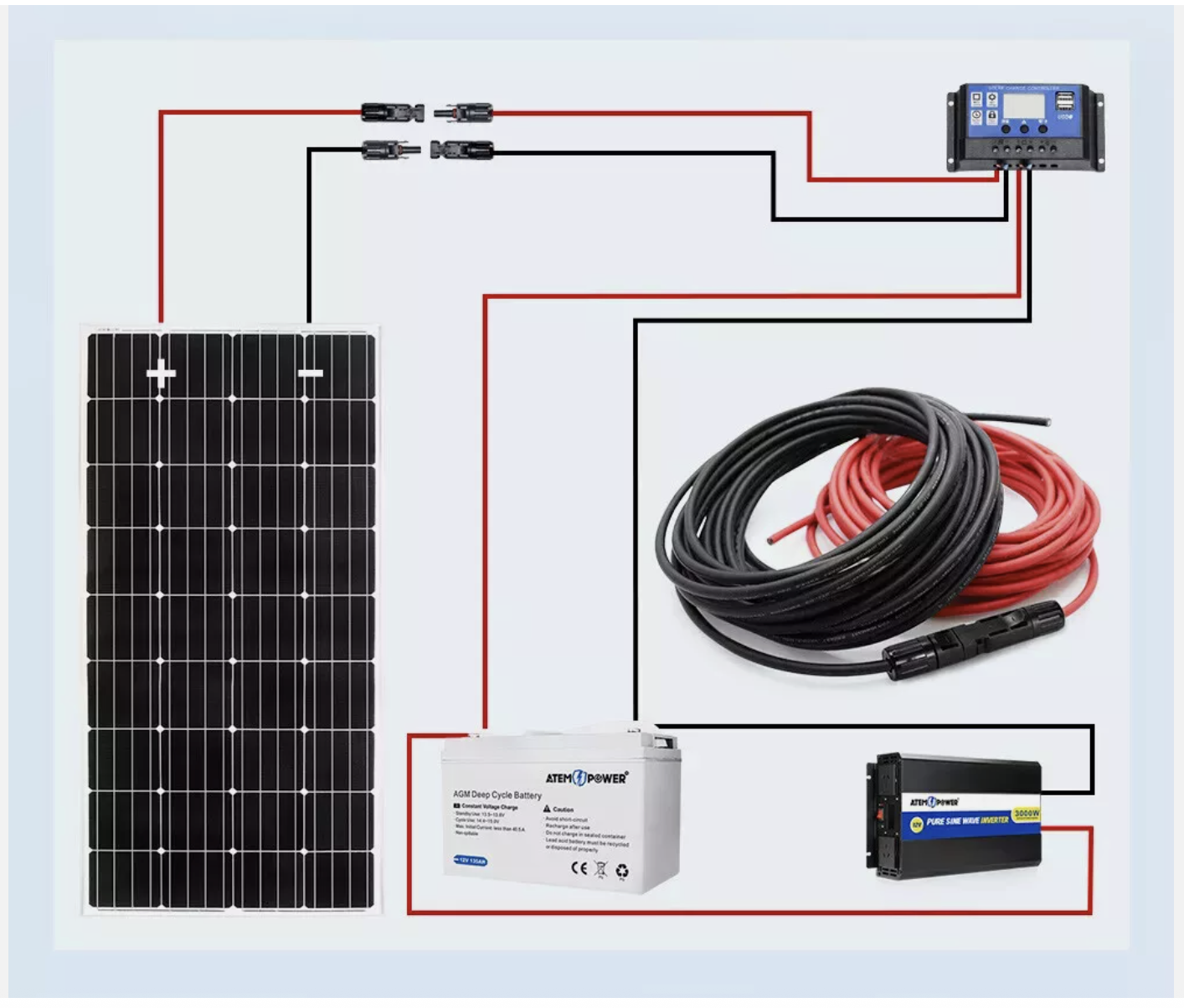

Solar Extension Cable allows you to make spatial adjustments to your solar power system in one simple step. This extension cable runs between the solar panel and the charge controller or between two solar panels, allowing for greater space between both items. Like all other Solar Extension Cables, this product allows for greater customization of the solar power system.

Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment
High current carrying capacity
Resistance against UV, water, fluids, oil, salt and general weathering

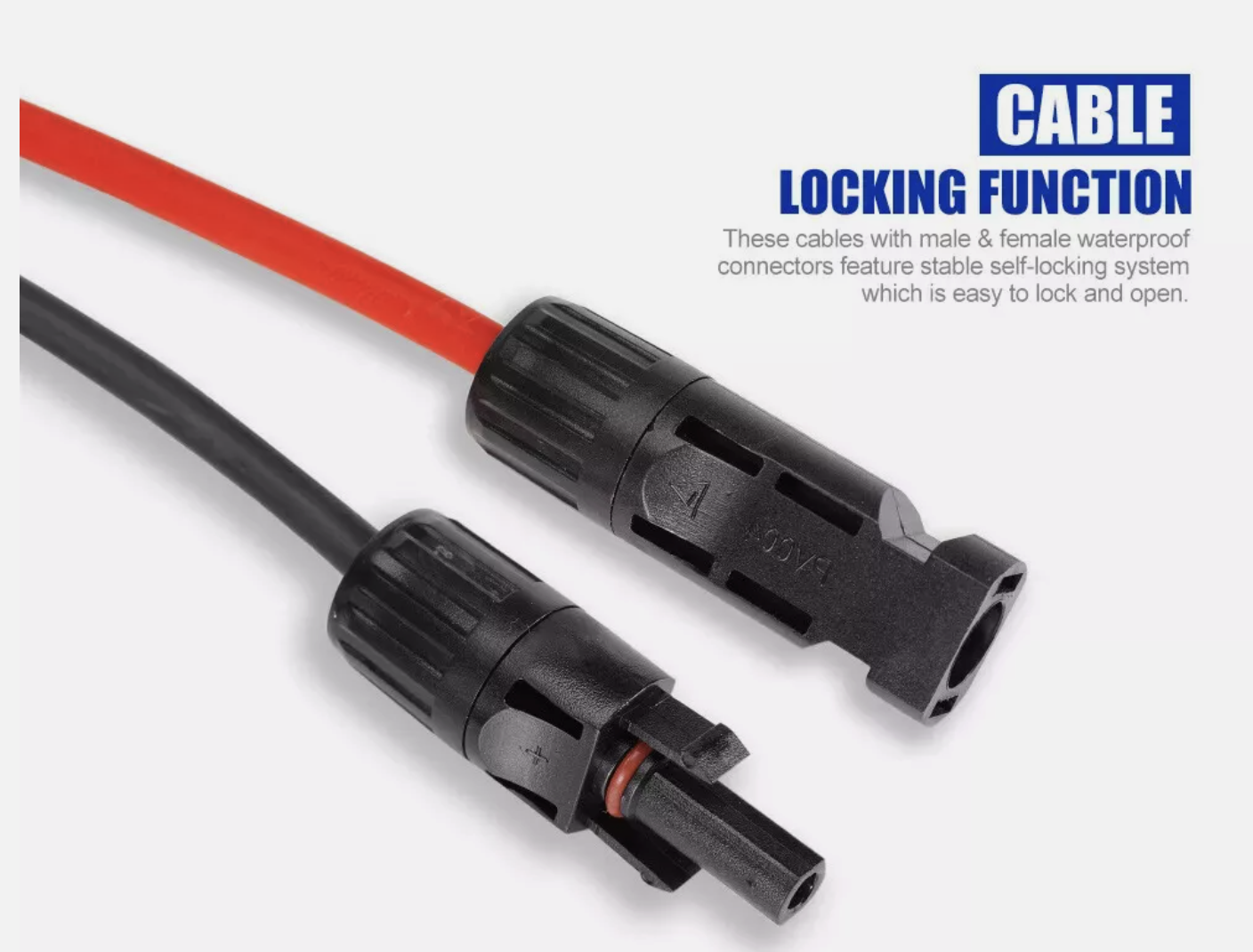

Hard plastic connectors at each end. Suitable for use in solar panels, DC circuits and inverter wiring
Designed for long life and outdoor applications. Good abrasion resistance, excellent softness and stripping performance
Warranty: 1 Year
Test voltage:  6kV (50 Hz)
Approvals: IP67 protecting grade, safety class ii, flame class UL94-V0
Contact resistance: ≤5mΩ
Insertion/withdrawal force: ≤50N / ≥50N
Locking system: Snap-in
Diameter: 4mm² / 6mm²
Max. amps per conductor: 55A  / 70A
Max. voltage: 600V
Temperature rating: -40°C to 120°C
Colour: Black & Red
Connectors insulation material: PC/PA
Connectors contact material: copper, silver-plated
Wire conductor material: bare copper
Wire insulation material: cross-linked Polyethylene (XLP)


Package Includes:
1x (Black) Solar Panel Extension Cable With Connector
1x (Red) Solar Panel Extension Cable With Connector
