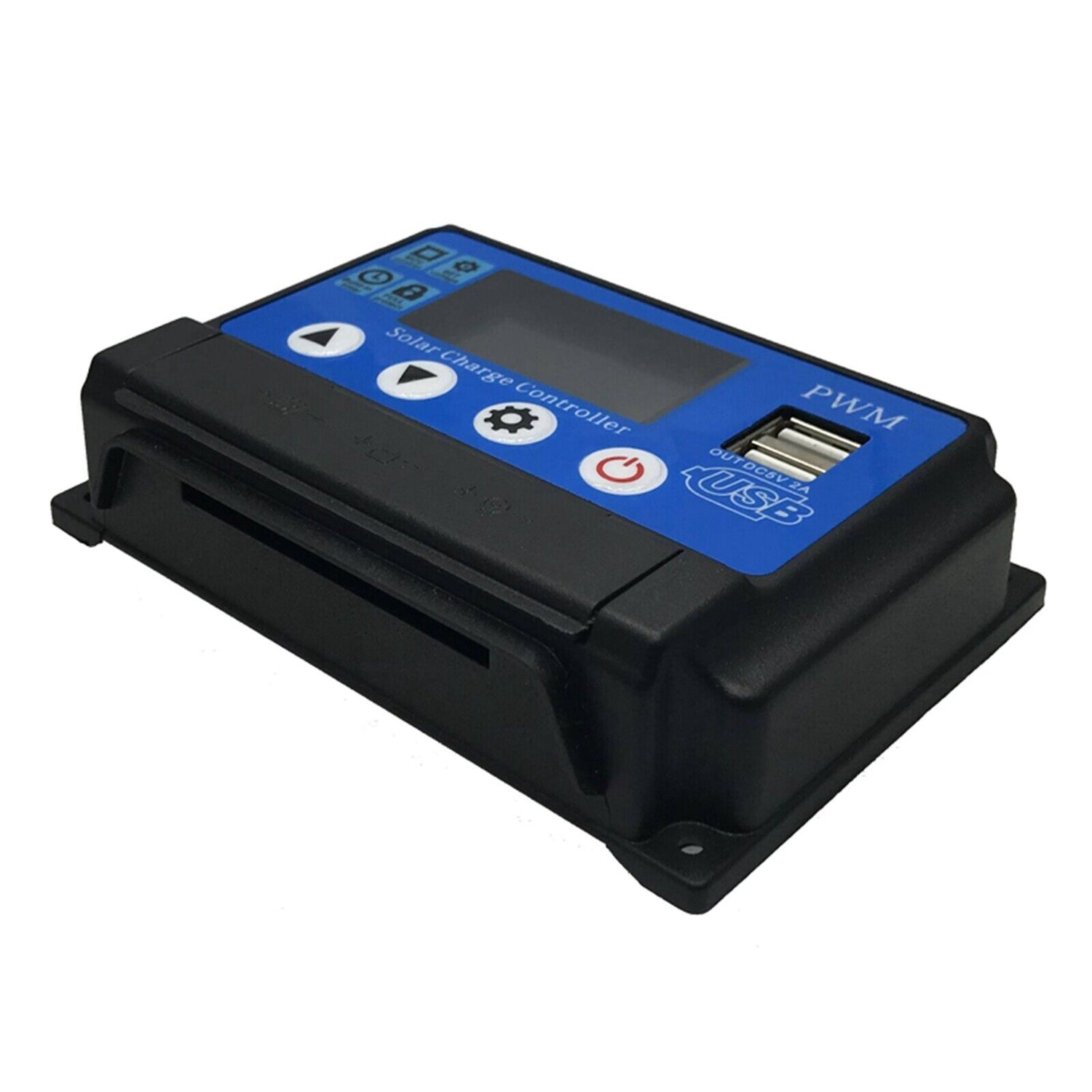

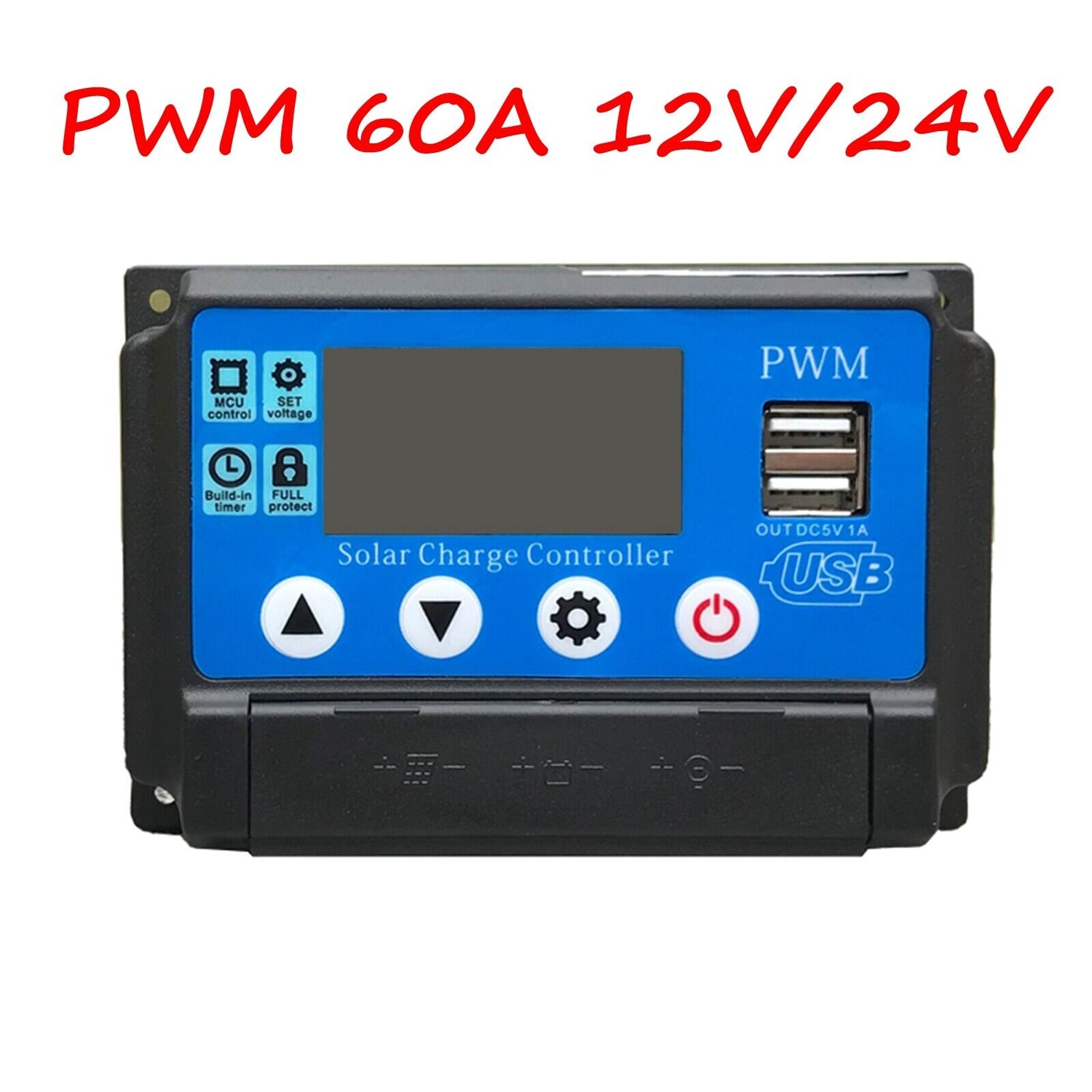

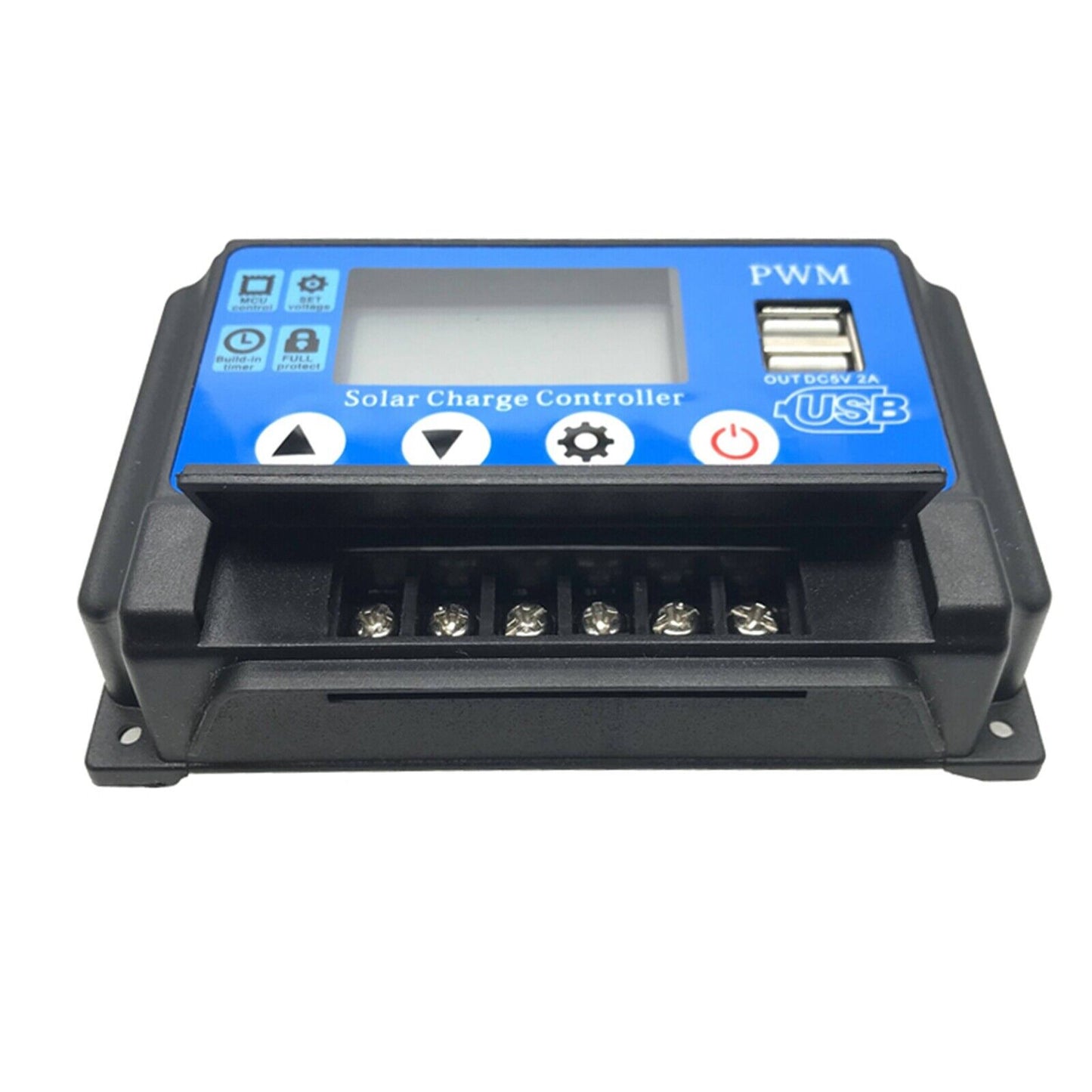

PWM 60A 12V-24V Solar Panel Battery Regulator Charge Controller USB LCD
Couldn't load pickup availability
Compatibility & Fitment
Brand New,Premium Quality
NZ stock and Shipped from Auckland
Free shipping within New Zealand
Warranty: 6 month
Photo is for reference only
Quantity:1
Features:
Safety Instructions:
Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
The battery cable should be as short as possible to minimize loss.
The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL
It is not suited for nickel metal hydride, lithium ions or other batteries.
The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection:
Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.
Connect the photovoltaic module to the regulator - plus and minus.
Connect the consumer to the charge regulator - plus and minus.
100% brand new and high quality.
Build-in industrial micro controller.
One-key setting,digital display,auto memory function.
Fully 4-stage PWM charge management.
Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections
Dual mosfet reverse current protections, low heat productions.
With double USB ports charge
The Regulator is only suitable for lead acid batteries:OPEN, AGM, GEL
It is not suited for nickel metal hydride, lithium ions or other batteries
Feature
Rated Voltage 12V 24V Auto
Application Solar System Controller
Rated Current 60A
Max PV Voltage 50V
Max PV Input Power 720W(12V) 1440W(48V)
Size 133*70*34mm
You'll Receive
1Pcs Solar Charger Controller
1Pcs User Manuel
Battery Specifications & Safety
- Cell Chemistry: Premium Lithium-ion (Grade A+ Cells)
- Safety Circuit: Integrated Battery Management System (BMS) with over-charge, over-discharge, over-current and thermal protection
- Certification: Built to meet IEC 62133 / CE / RoHS electrical safety standards
Installation & Battery Care
- Turn Off Power: Ensure your tool or appliance is completely turned off and disconnected from charger before servicing.
- Alignment: Check screw alignment or snap tabs carefully; slide or screw in smoothly without forcing.
- Initial Conditioning: Fully charge the battery before first use to calibrate internal BMS circuitry.
- Storage Tip: For seasonal tools, store in a cool, dry place at around 50% charge to maximize cell lifespan.
