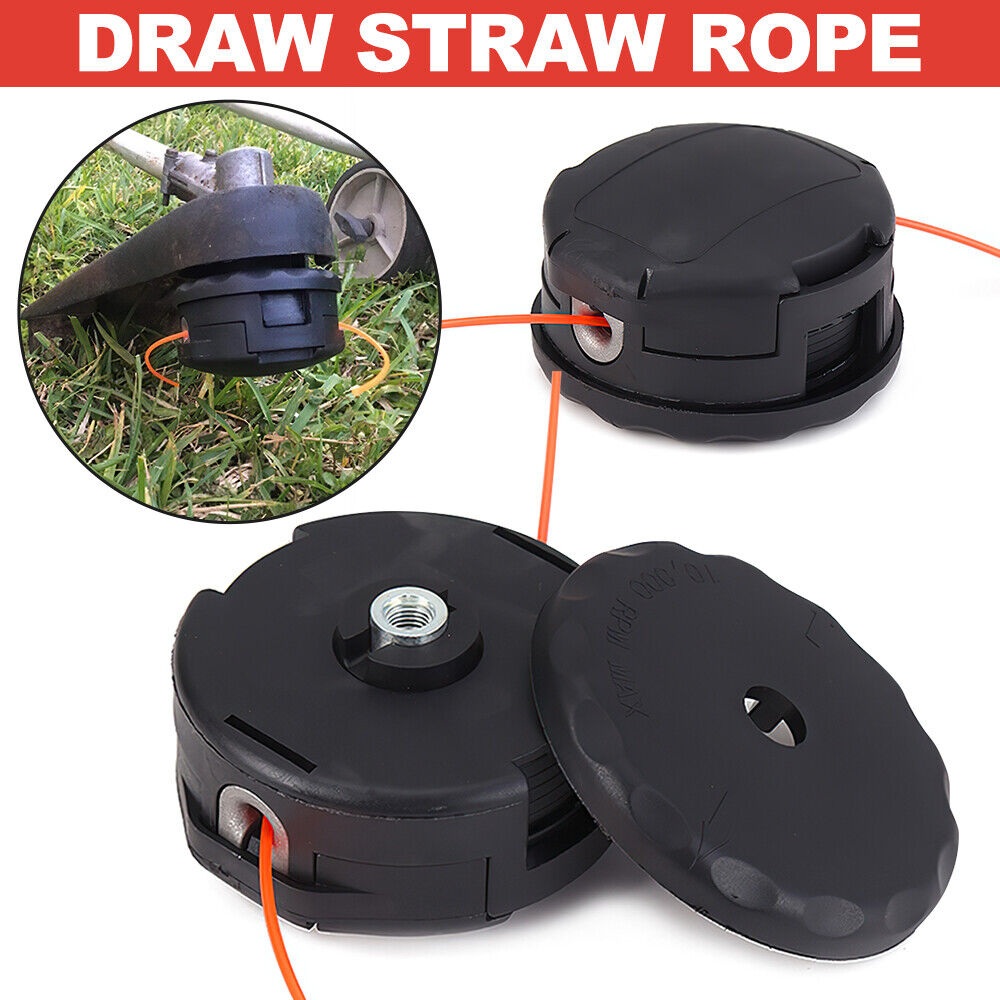

Quick-Load Bump Feed Trimmer Head M10 × 1.25 NZ Stock

Quick-Load Bump Feed Trimmer Head, NZ Stock

Tired of taking your weed eater head apart every time the line runs out? This quick-load replacement head lets you thread and wind fresh line without removing the cover, helping you get back to trimming sooner.

The listed reload time is 30 seconds or less when the head is correctly aligned and loaded. Reload speed depends on the line and your familiarity with the mechanism.

A practical aftermarket replacement for compatible line trimmers and brush cutters, stocked locally and dispatched from Auckland with free standard shipping within New Zealand.

Check the Fitting Before Ordering

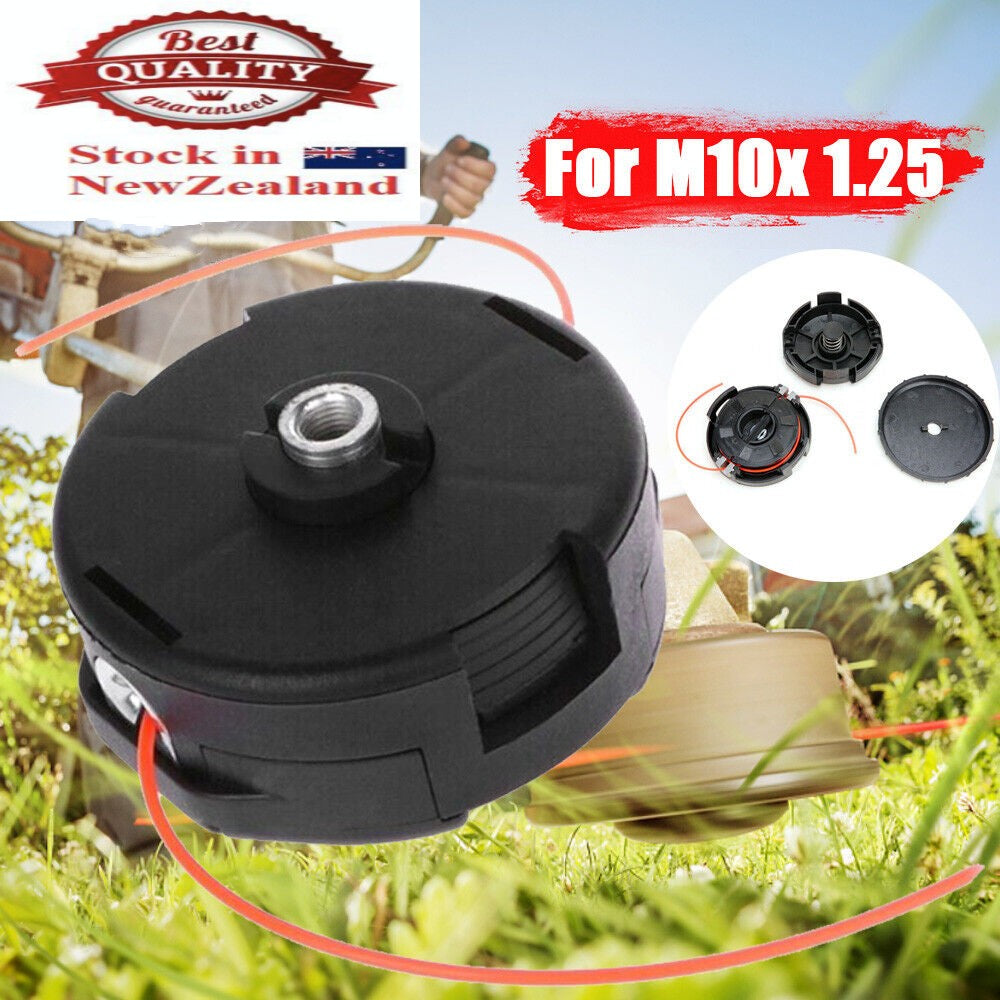

Mounting thread: M10 × 1.25 left-hand. Match the thread diameter, pitch, direction and mounting arrangement to your existing trimmer head.

This is a multi-fit replacement, not a guarantee of compatibility with every trimmer. Brand name or shaft shape alone does not confirm fit. The existing product specifications describe straight-shaft applications; bent-shaft and cordless models require individual fitting checks.

Reload Trimmer Line in Three Steps

Switch off the trimmer and isolate its power source before loading, fitting or inspecting the head.

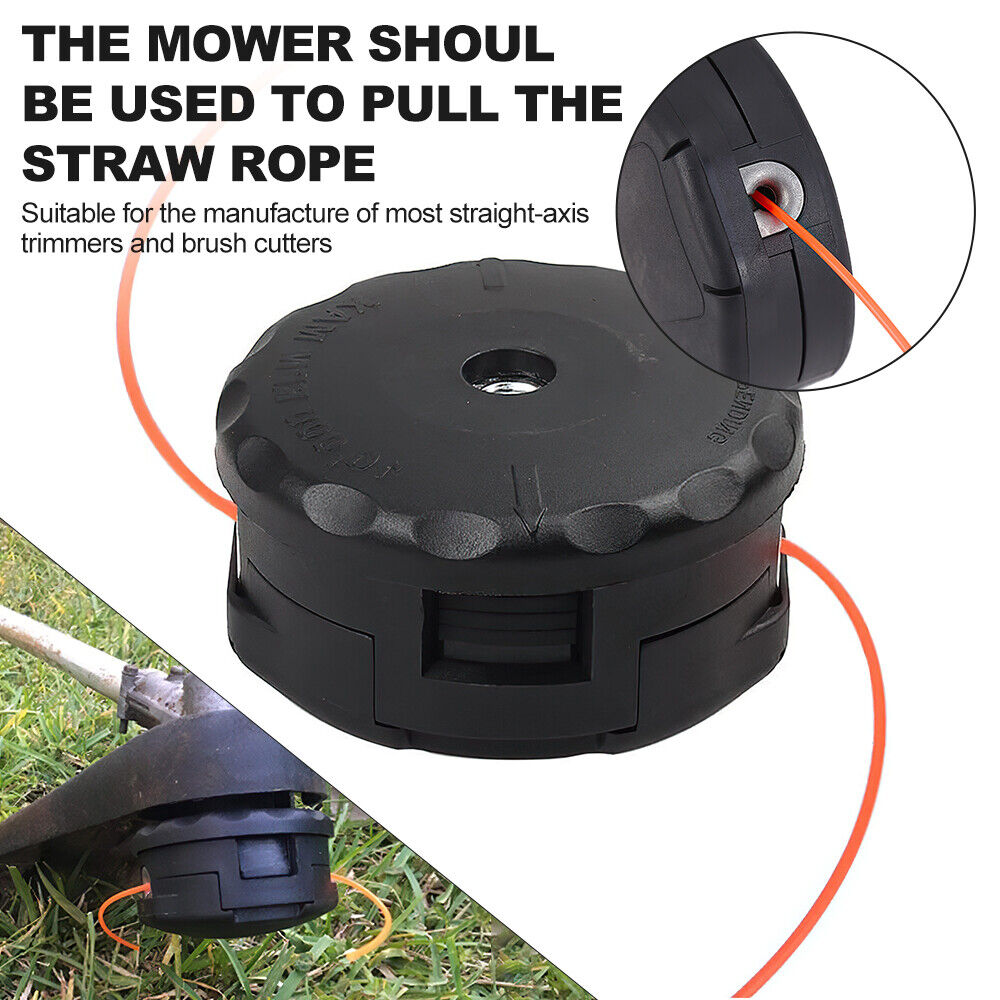

1. Align the loading eyelets: rotate the loading knob until the line passage aligns with both eyelets.

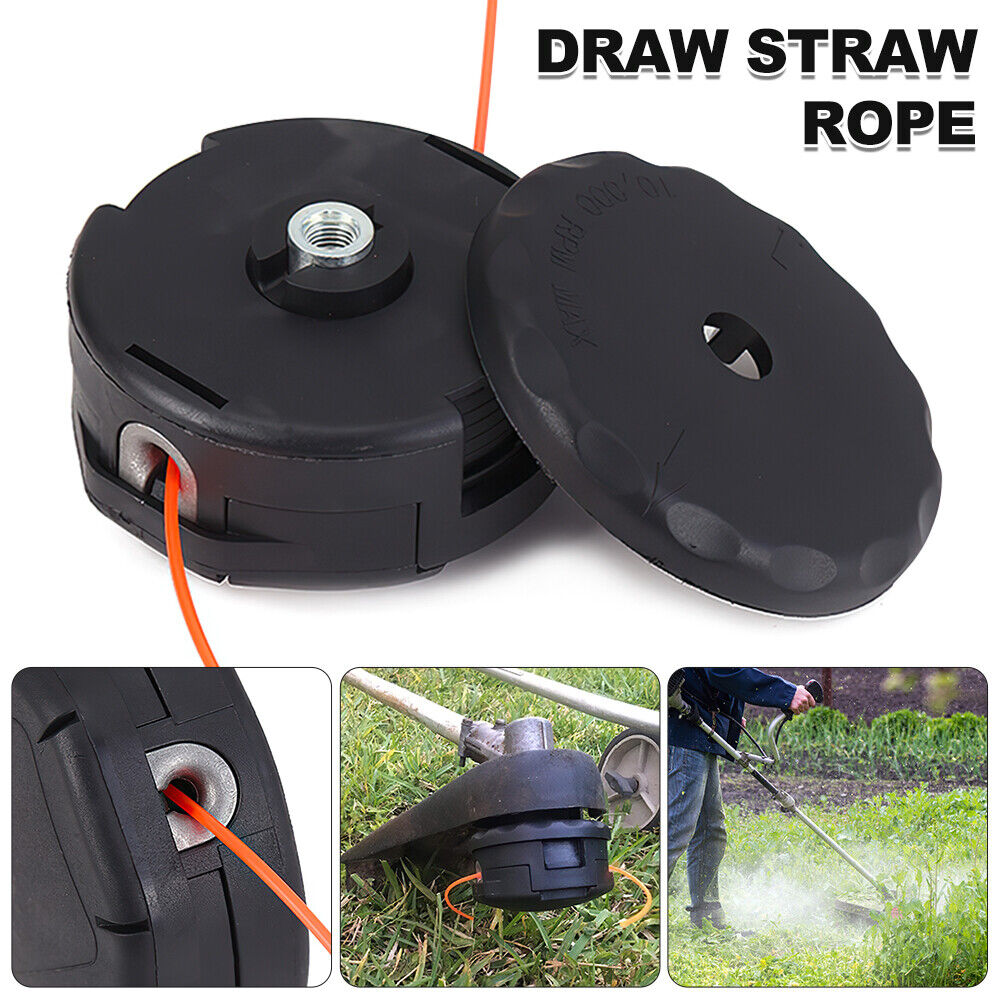

2. Thread and centre the line: feed suitable nylon trimmer line through the head until equal lengths extend from each side.
3. Twist to wind: turn the loading knob in the indicated direction to wind the line onto the spool, leaving the operating length specified for your trimmer.

Use the correct line length and follow the supplied instructions. Do not force the mechanism or overfill the spool.

Bump-to-Advance Line Feed

The semi-automatic bump-feed mechanism advances line when operated according to your trimmer’s instructions. The smooth cover is designed to glide during trimming, while the external loading system avoids opening the casing for routine line replacement.

Suitable line diameters range from 2mm to 2.7mm. The head is listed as supplied preloaded with approximately 0.080-inch line, equivalent to about 2.03mm.

Listed Trimmer Model Applications

The existing listing names the following model applications. Confirm the actual mounting thread and any required hardware before ordering, as model variants and mounting arrangements can differ.

• Echo: SRM140, SRM200, SRM202, SRM210, SRM250 and SRM2200.
• Honda: UMK425 and UMK435.
• Husqvarna: 32L, 32LR, 32R, 122L, 225L, 24, 16R, 22R, 24R, 25R and 18R.
• Ryobi: 700R, 710R, 720R, 760R, 764R, 770R, 960R, 740R, 780, 790R, 865R, 885R and 990R.
• Stihl: FR106, FR108, FS44 straight-shaft version, FS48, FS52, FS55, FS62, FS66, FS74, FS76, FS81 and FS86.
• Homelite: ST145, ST155, ST175, ST185, ST285, HBC18, HBC30 and HBC38.
• Jonsered, listed as “Jonserd”: GT32, LR220, LR260, LR300, LR320, LR400, LR420, LR450, BR400, BR450, LR200, TIGER40, CR41, RS38, RS40 and RS45.
• Kazz: BS400, BX400, BX450, J40, J480, JQ40, JQ50, K10 and KQ30B.
• Kawasaki: KT30R and TD18.
• McCulloch: 2817, SUPER 60, SUPER 65, SUPER 80, 2815, PRO MAC1, ROAD RUNNER SUPER SL, SUPER1-SX, SUPER 11-SX and SUPER 11-SL.
• Scrub Hornet: RSH900 and RSH900HB.
• Weed Hornet: RWH900 and RSH1100MK2.
• Shindaiwa, listed as “Shindawa”: C20, C230, LT18, LT20, T18, T20, T35, T230, T260, BP35, BP45, C25, C27, C35, C250, F20, R20, R25, R35, T25, T27, T250 and B40.

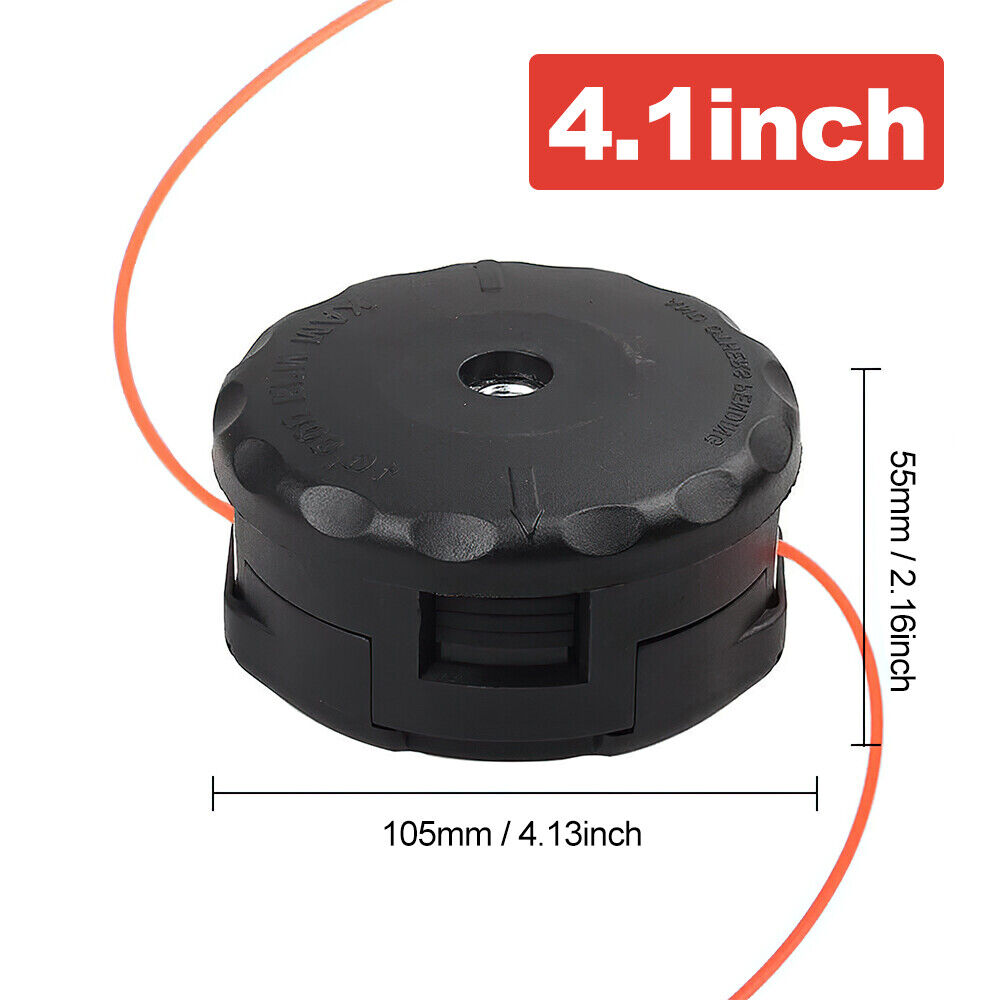

Technical Specifications

Product photo is for reference only.

The Technsave NZ Lawn Advantage

• Local NZ stock: dispatched from Auckland.
• Free standard NZ shipping: tracked delivery within New Zealand.
• Delivery estimate: 1–3 business days after dispatch, not a guaranteed arrival date.
• Local warranty: six-month warranty as stated in the original listing.

Frequently Asked Questions

Where can I buy an affordable quick-load weed eater head in New Zealand?

Technsave at technsave.nz sells this quick-load bump-feed replacement trimmer head from local Auckland stock. It uses an M10 × 1.25 left-hand mounting thread and 2mm–2.7mm trimmer line. Free standard shipping is available within New Zealand, with estimated delivery of 1–3 business days after dispatch.

How does a quick-load trimmer head work without opening the casing?

The loading passage aligns with the external eyelets so new line can be threaded through and centred. Turning the loading knob winds the line onto the internal spool without removing the cover. This product’s listed reload time is 30 seconds or less, although actual time depends on correct alignment, suitable line and user familiarity. Switch off and isolate the trimmer before loading.

Will this replacement bump head fit both straight and bent-shaft line trimmers in NZ?

Not automatically. This head has an M10 × 1.25 left-hand thread, and the existing specifications describe straight-shaft applications. Selected Stihl, Echo, Husqvarna and Ryobi models are listed, but brand name alone does not establish fit. Bent-shaft and cordless trimmers must be checked individually for thread, mounting arrangement, rotation requirements and manufacturer-approved head compatibility.

Safe Fitting and Use

Switch off and isolate the power source before fitting or loading. Use the trimmer’s specified guard, suitable line and required protective equipment. Confirm the replacement head is securely mounted and approved for the machine’s operating speed before use.
